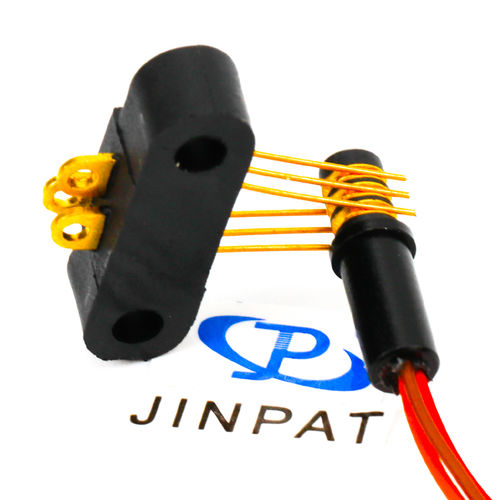

sub-assembly slip ring / standard / with gold contacts
LPS-03 JINPAT Electronics Co., Ltd.



  • Construction:


  • Other characteristics:

    standard, with gold contacts

  • Rotational speed:

    100 rpm (628 rad.min-1)

  • Current:

    Min.: 1 A

    Max.: 3 A

  • Voltage:

    240 V

  • Number of contacts:

    3 unit


Part Number: LPC-03

3 circuits

Current range: 3circuits*2A; Voltage of 240VAC;
Dielectric Strength: ≥500V@50Hz between circuits; Insulation Resistance: 500MΩ@500VDC
Dynamic Resistance Fluctuation Values: ≤35mΩ

Operating Speed:0~300rpm; Wire Size: AWG24# Teflon® UL;
Wire Length: 70mm

Working Temperature: -20°C~+60°C;
