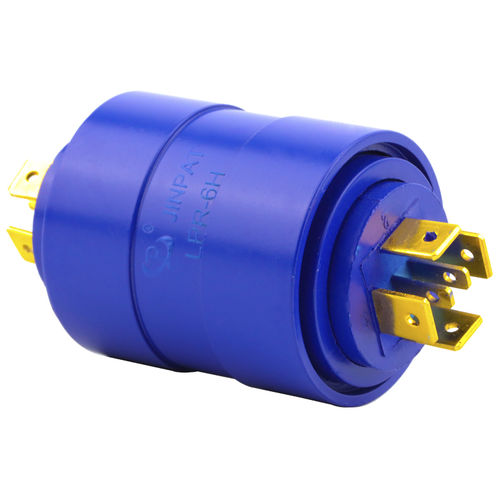

serial slip ring / electric / solid-shaft / column type
LPR-6H JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Type:

    serial, electric

  • Construction:

    solid-shaft, column type

  • Applications:

    for packaging, for strain gauges

  • Material:

    gold

  • Other characteristics:

    mercury, high-current, conductive, with pins

  • Rotational speed:

    1,800 rpm (11,310 rad.min-1)

  • Current:

    30 A

  • Voltage:

    250 V

  • Number of contacts:

    2 unit

Description

Part Number: LPR-6H

4circuits

Current range:2circuits*20A / 2circuits*5A;
Voltage of 230VAC; Dielectric Strength ≥500V@50Hz between circuits;
Insulation of 100MΩ@500VDC; Electrical Noise: ≤8mΩ

Wire Size: Gold plated pin; Operating Speed:0~300rpm;
Contact: Precious metal; Housing: Engineering plastic

Working Temperature: -20°C~+80°C; Up to 60%RH; IP54
