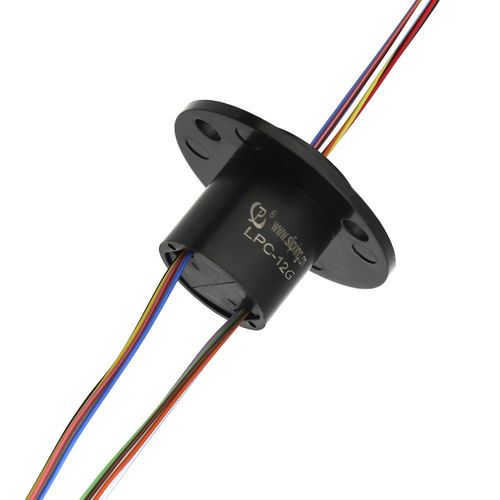

Capsule slip ring LPC-12G

compactstandardwith gold contacts

Description This unit can be used in any electromechanical System that requires unrestrained, continuous rotation wtiile transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. The LPC-12G capsule slip ring is a standard, off-the shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections. Using a 90° V-groove ring design for each ring, the LPC-12G provides smoother running, lower torque and lower electrical noise than compétitive slip rings. It is available in 6,12 circuit models. Features ♦ - 12 circuits models ♦ - 2 amps ,240VAC/DC per circuit ♦ - Speed up to 2500 rpm continuous ♦ - Gold-Gold contacts makes long life time ♦ - Compatible with data bus protocols ♦ - Sealed units are also available ♦ - Flexible, color-coded, silver-plated, insulated lead wires ♦ - Transfers analog and digital signals ♦ - Also available with 5 and 10 amps power rings combined with 2 amps rings. ♦ - Precision ball bearings meet or exceed life requirements for most commercial applications Advantage ♦ - Low torque minimizes System torque budget ♦ - Compact design and Smooth running ♦ - Low electrical noise ♦ - Quick shipment ♦ - High bandwidth transfer capability
