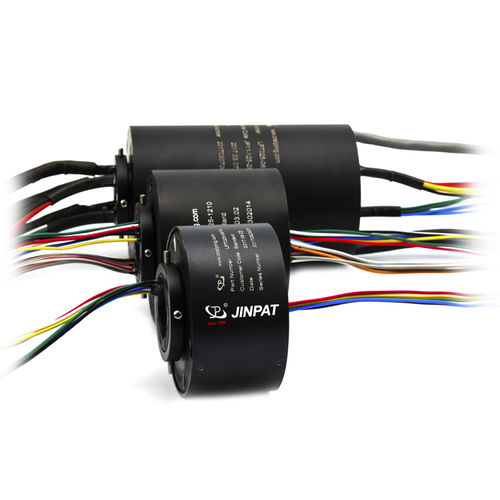

hollow-shaft slip ring / for hydraulic applications / medical / compact
LPT025 JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Construction:

    hollow-shaft

  • Applications:

    for hydraulic applications, medical

  • Other characteristics:

    compact

  • Rotational speed:

    500 rpm (3,142 rad.min-1)

  • Current:

    Min.: 2 A

    Max.: 15 A

  • Voltage:

    380 V

  • Number of contacts:

    Min.: 1 unit

    Max.: 24 unit

Description

Part Number: LPT025

7circuits

Current Range: 2circuits*1.5A, 1 circuit*DC, 2circuits*4A, 1circuit*HDMI, 1circuit*USB2.0; Voltage of 48V;
Compression Strength: ≥200V@50Hz between circuits(current);
Insulation Resistance of 50MΩ@200VDC(current);
Wire Size: AWG22#/AWG26#AWG28#/AWG30/USB2.0/HDMI

Operating Speed: 0~100rpm; Inner diameter of φ25mm
Wire Length: rotor (265±5mm/340±5mm), stator(135±5mm/120±5mm)

Working Temperature: -20°C~+60°C; Up to 95%RH; IP54
