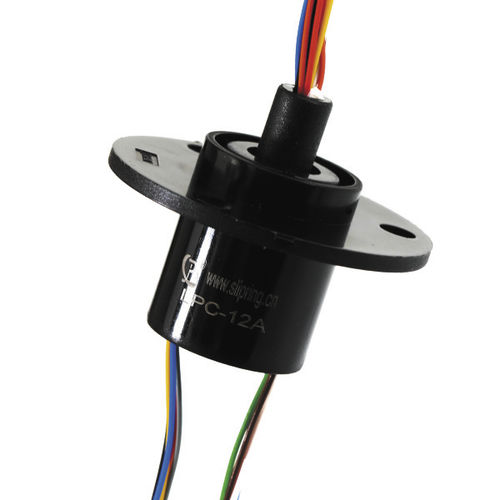

Electric slip ring LPC-12Acapsulefor medical equipment12 wires
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Construction
- capsule
- Applications
- for medical equipment
- Other characteristics
- 12 wires, high-speed
- Voltage
240 V
- Primary current
2 A
- Rotational speed
300 rpm
(1,885 rad.min-1)- Number of channels
12 unit
Description
Part Number: LPC-12A
12circuits
Current range: 12circuits*2A; Voltage of 240VAC/DC;
Dielectric Strength: ≥500V@50Hz between circuits; Insulation of 100MΩ@500VDC
Dynamic Resistance Fluctuation Values: ≤50mΩ
Operating Speed:0~100rpm; Wire Size: AWG28# silver plated Teflon® UL;
Wire Length: stator (250mm), rotor(250mm)
Working Temperature: -30°C~+50°C; IP54;
