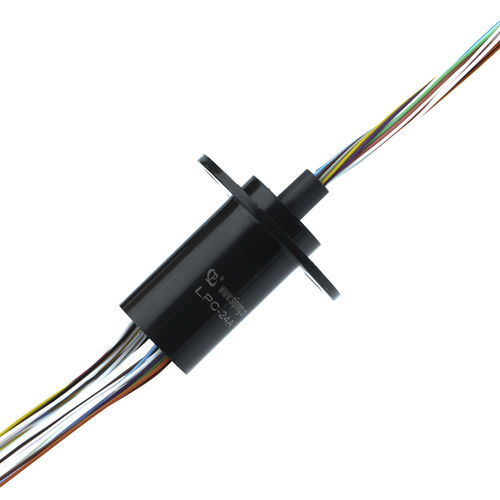

capsule slip ring / for medical devices / gold / compact
LPC-24A JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Construction:

    capsule

  • Applications:

    for medical devices

  • Material:

    gold

  • Other characteristics:

    compact, standard

  • Rotational speed:

    200 rpm (1,257 rad.min-1)

  • Current:

    Min.: 2 A

    Max.: 48 A

  • Voltage:

    Min.: 1 V

    Max.: 240 V

  • Number of contacts:

    Min.: 1 unit

    Max.: 24 unit

Description

Part Number: LPC-24A

24circuits

Current Range: 24 circuit*2A; Voltage: 240 VAC/VDC; Dielectric Strength ≥500VAC@50Hz between circuits;
Insulation of 100MΩ@500VDC; Electric Noise:Mini 1mΩ

Operating Speed:0~200 rpm; Wire Size: AWG28#Silver plated copper;
Wire Length: 250m; Inner Diameter: 1.5~7.0mm
Contact: Gold to gold; Housing: Aluminum alloy;

Working Temperature: -20°C~+60°C; Up to 60%RH; IP54
