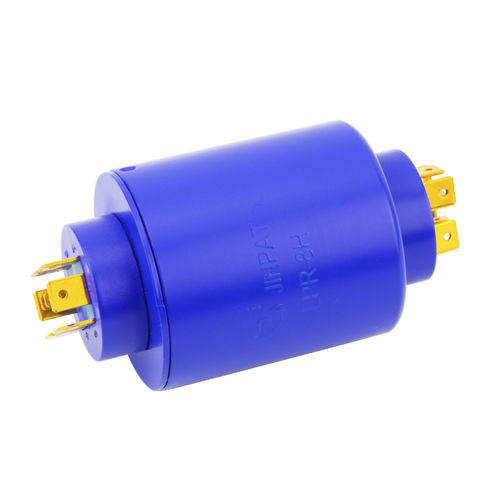

Electric slip ring LPR-8H column typefor packagingenvironment-friendly
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Construction
- column type
- Applications
- for packaging
- Other characteristics
- environment-friendly
- Voltage
Min.: 1 V
Max.: 380 V
- Primary current
Min.: 1 A
Max.: 20 A
- Rotational speed
300 rpm
(1,885 rad.min-1)- Number of channels
8 unit
Description
Part Number: LPR-8H
8circuits
Current Range: 6circuits *20A, 2 circuits*5A;
Voltage of 380VAC; Dielectric Strength ≥500VAC@50Hz between circuits;
Insulation of 100 MΩ@ 500 VDC; Electrical Noise: ≤35mΩ
Operating Speed:0~300 rpm; Wire Size: Silver plated pin;
Contact: Gold to gold; Housing: Engineering plastic
Working Temperature: -20°C~+60°C; Up to 60%RH; IP54
VIDEO
Catalogs
LPR-8H Series Slip Ring
2 Pages
