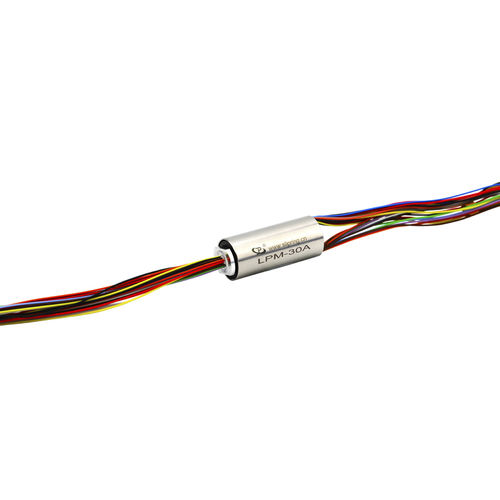

capsule slip ring / for medical equipment / for cranes / metal
LPM-30A JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Construction:

    capsule

  • Applications:

    for medical equipment, for cranes

  • Material:

    metal

  • Other characteristics:

    noise immunity, high-current, high-speed, miniature, with gold contacts, compact

  • Rotational speed:

    300 rpm (1,885 rad.min-1)

  • Current:

    2 A

  • Voltage:

    240 V

  • Number of contacts:

    Max.: 30 unit

    Min.: 2 unit

    30 unit

Description

Part Number:LPM-30A

30circuits

Current Range: 30circuits*1A; Voltage of 240VAC;
Dielectric Strength: ≥500V@50Hz; Insulation: 100MΩ@500VDC;
Electrical Noise:≤35mΩ

Operating Speed:0~300rpm; Wire Size: AWG30#silver plated Teflon UL®;
Wire Length: stator (250mm), rotor(250mm);
Precious metal contact; Alluninum alloy housing;

Working Temperature: -20°C~+60°C; IP54;

Life: 2 million turns
