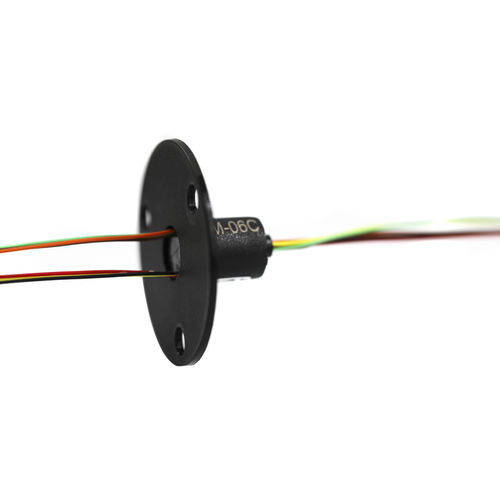

electric slip ring / capsule / for measurement instruments / miniature
LPM-06C JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Type:

    electric

  • Construction:

    capsule

  • Applications:

    for measurement instruments

  • Other characteristics:

    miniature

  • Rotational speed:

    300 rpm (1,885 rad.min-1)

  • Current:

    12 A

  • Voltage:

    240 V

  • Number of contacts:

    6 unit

Description

Part Number: LPM-06C

6circuits

Current Range: 6circuits*2A, 14circuits*10A; Voltage of 100VAC/DC;
Dynamic Resistance Fluctuation Values:≤35mΩ

Operating Speed:0~300rpm; Wire Size: AWG30# silver plated Teflon® UL;
Wire Length: stator (250±5mm), rotor(250±5mm);
Precious metal contact; Engineering plastic housing;

Working Temperature: -20°C~+60°C; Working Humidity: 60%RH; IP54
