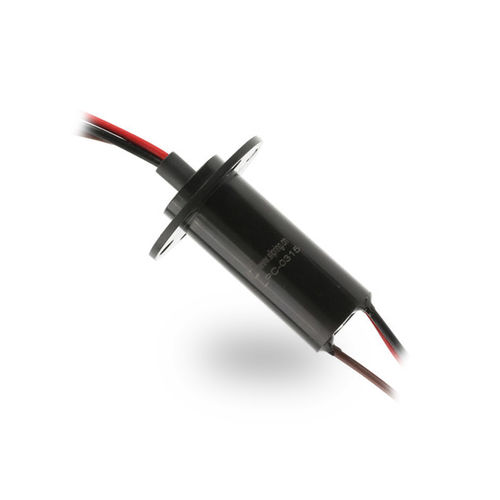

Electric slip ring / capsule / for wind generators / low-torque
LPC-0315 JINPAT Electronics Co., Ltd.

Characteristics

  • Type:

    electric

  • Construction:

    capsule

  • Applications:

    for wind generators

  • Other characteristics:

    low-torque

  • Rotational speed:

    Min.: 1 rpm (6.28 rad.min-1)

    Max.: 500 rpm (3141.59 rad.min-1)

  • Current:

    Min.: 1 A

    Max.: 15 A

    45 A

  • Number of contacts:

    Min.: 1 unit

    Max.: 3 unit

    3 unit

Description

Description:

capsule slip ring is compact small size slip rings, that can meet 360 degree freely rotation. allowing high data rate and frequency signal transmission.Designed for date and video signals transmission of small and medium-size equipment.

The mounting flange design is compatible with most third-party products where three mounting holes are used. So it can be a pop-in replacement. It also provides a more convenient mounting scheme with four mounting holes

Additional Slip Ring Features:
1. Outside diameter series : 22-25mm Circuits:1-125
2. High speed, cameras/security industry used, also widely used revolving stage of lights
3. 360-degree video signal even HD signal transmission
4.Signals can be combined ,such as video. control, ethernet, servo motor and so on
5 .Contact material used military hard gold plated which ensure low resistance fluctuation and long work life
6 .support combined transmission for signal and power
7.Low torque, low loss and maintenance, low electrical noise
8.Circuits.housing material, protection grade ,high speed, lead wire length, terminal connector, special lead wire, dust-proof, working temperature, and the shell can be followed requirement for customization.

please contact us for your special needs so that our engineers provide the suitable solution and recommendation for you!
