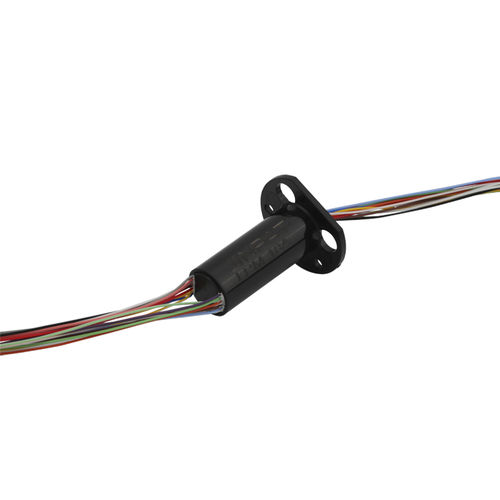

electric slip ring / capsule / for CCTV applications / miniature
LPM-18A JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Type:

    electric

  • Construction:

    capsule

  • Applications:

    for CCTV applications

  • Other characteristics:

    miniature

  • Rotational speed:

    300 rpm (1,885 rad.min-1)

  • Current:

    36 A

  • Voltage:

    240 V

  • Number of contacts:

    18 unit

Description

Part Number: LPM-18A

18 circuits

Current range: 18circuits*2A; Voltage of 240VAC;
Dielectric Strength ≥500V@50Hz between circuits; Insulation of 100MΩ@500VDC

Operating Speed:0~300rpm; Wire Size: AWG30#, silver plated Teflon UL®;
Wire Length: stator (400mm), rotor(400mm); Contact: Gold to gold;

Working Temperature: -20°C~+60°C; IP54
Long service life: 50 million turns
