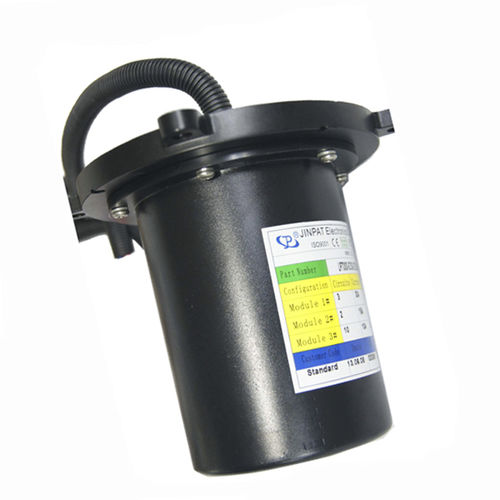

hollow-shaft slip ring / low-torque
LPT000-0330-0215 JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Construction:

    hollow-shaft

  • Other characteristics:

    low-torque

  • Rotational speed:

    500 rpm (3,142 rad.min-1)

  • Current:

    Max.: 30 A

    Min.: 15 A

  • Voltage:

    380 V

  • Number of contacts:

    Max.: 24 unit

    Min.: 1 unit

Description

Part Number:LPT000-0330-0215

15circuits

Current Range: 3circuits*30A, 2circuits*15A, 10circuits*10A; Voltage of 220VAC;
Dielectric Strength ≥1000V@50Hz between circuits; Insulation of 1000MΩ@500VDC;
Wire Size: FLRY-B 2.5mm², FLY-B 1.5mm², FLRY-B 1mm²
Operating Speed:0~100rpm; Wire Length: stator (0.5m), rotor(2m);
Weight: 8kg; Contact: Precious metal; Housing: Engineering plastic;

Working Temperature: -40°C~+60°C; Up to 60%RH; IP65;
