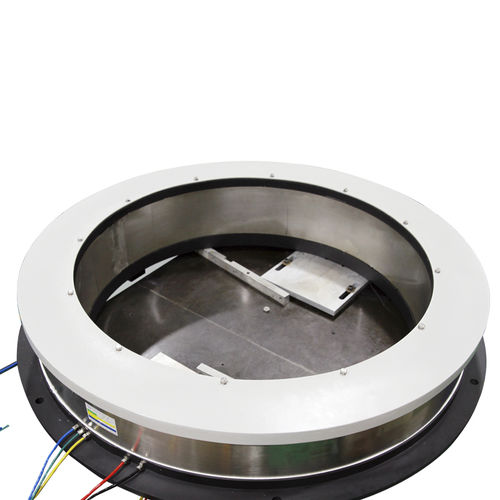

through-bore slip ring / for offshore oil rigs / large-diameter
LPT980-0540 JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Construction:

    through-bore

  • Applications:

    for offshore oil rigs

  • Other characteristics:

    large-diameter

  • Rotational speed:

    Min.: 0 rpm (0 rad.min-1)

    Max.: 5 rpm (31 rad.min-1)

  • Current:

    Min.: 1 A

    Max.: 40 A

  • Voltage:

    690 V

  • Number of contacts:

    Min.: 2 unit

    Max.: 5 unit

Description

Part Number: LPT980-0540

5 circuits

Current range: 5 circuits*40A;
Voltage of 690 VAC; Dielectric Strength ≥2000VAC@50Hz between circuits;
Insulation of 2000MΩ@500VDC; Electrical Noise: ≤70mΩ
Wire Size: AWG# RW Wire

Operating Speed:0~5 rpm; Wire Length: stator (300mm), rotor(300mm);
Inner diameter of φ980mm; Contact: Copper Graphite; Housing: Stainless Steel 304

Working Temperature: -30°C~+80°C; Up to 60%RH; IP65
