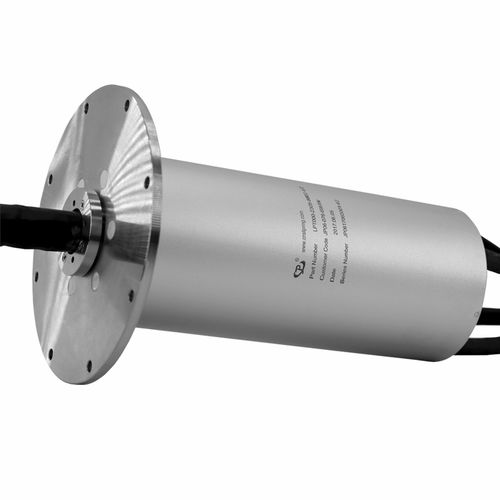

electric slip ring / Ethernet / serial / solid-shaft
LPT000-2305-5902-E2 JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Type:

    electric, Ethernet, serial

  • Construction:

    solid-shaft

  • Material:

    aluminum

  • Other characteristics:

    custom, multi-channel, analog, RF

  • Rotational speed:

    Min.: 0 rpm (0 rad.min-1)

    Max.: 100 rpm (628 rad.min-1)

  • Current:

    2 A, 5 A

  • Voltage:

    30 V

  • Number of contacts:

    Min.: 1 unit

    Max.: 12 unit

Description

Part Number: LPT000-2305-5902-E2

83circuits

Current range: 23circuits*5A, 59 circuits*2A, 1circuit*100M Ethernet;
Voltage of 30VAC/30VDC; Dielectric Strength: between circuits≥1000VAC@50Hz, ≥300VAC@50Hz (signal) ;
Insulation of 500MΩ@500VDC, 100MΩ@300VDC(signal); Electrical Noise: ≤10mΩ
Wire Size: AWG# two-core twisted shielded wires (TYCO Substitution)
AWG16# (1.3mm²)Teflon ®UL AWG22# (0.35mm²)Teflon ®UL Cat5E

Operating Speed:0~100rpm; Wire Length: stator (4000m), rotor(3000m); Gold-gold contact;
Working Temperature: -20°C~+60°C; Up to 60%RH; IP54
