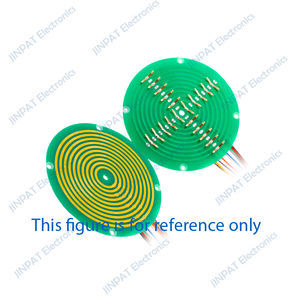

through-bore slip ring / pancake type / compact
LPKS040-0405 JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Construction:

    through-bore, pancake type

  • Other characteristics:

    compact

  • Rotational speed:

    300 rpm (1,885 rad.min-1)

  • Current:

    Max.: 20 A

    Min.: 1 A

  • Voltage:

    240 V

  • Number of contacts:

    Max.: 20 unit

    Min.: 1 unit

Description

Part Number: LPKS-040-0405

4circuits

Current range: 4circuits*5A; Voltage of 240VAC/DC;
Dielectric Strength: ≥100V@50Hz between circuits; Insulation of 50MΩ@100VDC
Dynamic Resistance Fluctuation Values: ≤70mΩ

Operating Speed:0~300rpm; Wire Size: AWG22# (0.35mm²) Teflon® UL;
Wire Length: stator (300mm); Inner Diameter: φ40mm
Precious metal contact; Housing: FR-4

Working Temperature: -20°C~+60°C;
