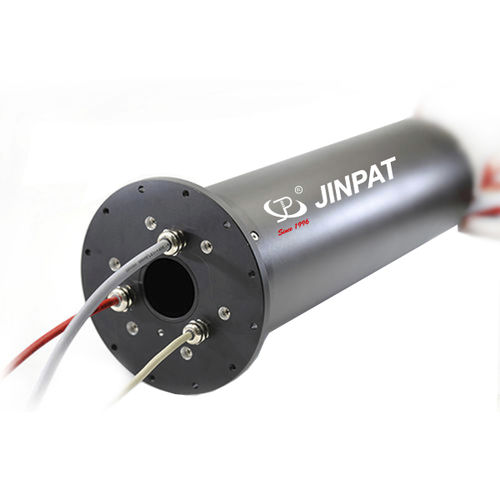

Ethernet slip ring / HD-SDI / capsule / compact
LPT050-0415-0406-04S JINPAT Electronics Co., Ltd.



  • Type:

    Ethernet, HD-SDI

  • Construction:


  • Other characteristics:


  • Rotational speed:

    Min.: 0 rpm (0 rad.min-1)

    Max.: 50 rpm (314 rad.min-1)

  • Current:

    6 A, 15 A

  • Voltage:

    24 V

  • Number of contacts:

    13 unit


Part Number: LPT050-0415-0406-04S

4 circuits* 15A, 4circuits*6A , 4circuits* signal;
Voltage of 24VDC; Dielectric Strength: between circuits ≥1000VAC@50Hz between circuits, 300VAC@50Hz (signal);
Insulation of 500MΩ@500VDC, 300MΩ@500VDC; Electrical Noise: ≤70mΩ

Operating Speed:0~50rpm;
Wire Size: (2*2*0.34mm²) Savax Savax Savatronic-liycy CC-LINK(3×20AWG) SAVAFLEX-1000 4*2.5mm²
Wire Length: stator (2000mm), rotor(2000mm); Inner diameter of φ50mm

Working Temperature: -10°C~+70°C; Up to 60%RH; IP54
