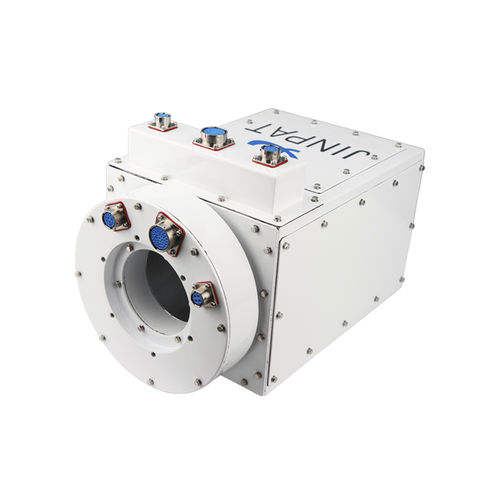

through-bore slip ring / for marine applications / large-diameter / high-current
LPA650 JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Construction:

    through-bore

  • Applications:

    for marine applications

  • Other characteristics:

    large-diameter, high-current

  • Current:

    Min.: 600 A

    Max.: 2,000 A

Description

Part Number: LPA650-03120-01PE-2210

26circuits

Current Range: 4circuits*120A, 22circuits *10A; Voltage of 380VAC;
Dielectric Strength: ≥1000V@50Hz between circuits;
Insulation Resistance of 500MΩ@500VDC;

Wire Size: 25² RW wire, 2.5² RW wire; Wire Length: 3000mm (rotor), 3000mm(stator)
Operating Speed: 0~20rpm; Inner diameter of φ650mm;

Working Temperature: -20°C~+80°C; Up to60%RH; IP54
