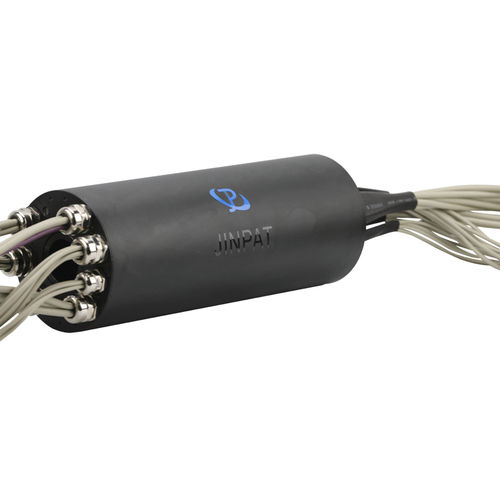

through-bore slip ring / for wrapping machines / low-torque
LPT050-0615 JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Construction:

    through-bore

  • Applications:

    for wrapping machines

  • Other characteristics:

    low-torque

  • Rotational speed:

    500 rpm (3,142 rad.min-1)

  • Current:

    Min.: 2 A

    Max.: 10 A

  • Voltage:

    380 V

  • Number of contacts:

    Min.: 1 unit

    Max.: 24 unit

Description

Part Number: LPT050-0615

10circuits

Current range: 6circuits* 15A, 4circuits* 485 signal, 1circuit*analog video signal;
Voltage of 220VAC;
Dielectric Strength: between circuits ≥1000VAC@50Hz (current), ≥300VAC@50Hz (signal) ;
Insulation of 500MΩ@500VDC (current), 100MΩ@300VDC(signal); Electrical Noise: ≤70mΩ
Wire Size: 0.3mm³ four-core shielded twisted wires AWG12# Tin plated Teflon UL®

Operating Speed:0~300rpm; Wire Length: stator (300mm), rotor(300mm); Inner diameter of φ50mm

Working Temperature: -20°C~+60°C; Up to 60%RH; IP54;
