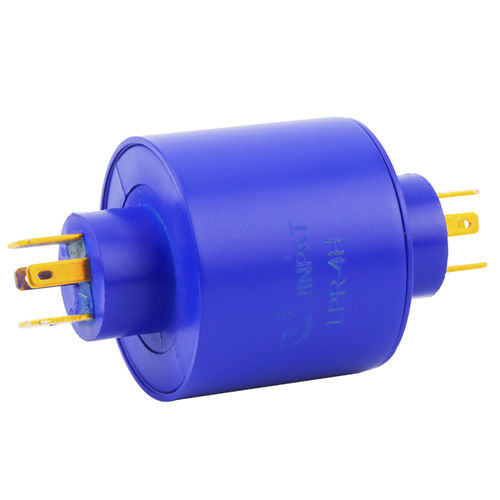

electric slip ring / for packaging / compact / custom
LPR-4H JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Type:

    electric

  • Applications:

    for packaging

  • Other characteristics:

    compact, custom

  • Rotational speed:

    300 rpm (1,885 rad.min-1)

  • Current:

    5 A

  • Voltage:

    500 V

  • Number of contacts:

    4 unit

Description

Part Number: LPR-4H

4 circuits

Current range: 2circuits*5A, 2circuits*15A;
Voltage of 380VAC; Dielectric Strength ≥500VAC@50Hz between circuits;
Insulation of 100MΩ@500VDC; Electrical Noise: ≤70mΩ


Operating Speed:0~500rpm;
Wire Size: Silver plated pin;
Wire Length: stator (250±5mm), rotor(250±5mm);
Contact: precious metal; Housing: Engineering plastic

Working Temperature: -20°C~+60°C; Up to 60%RH; IP54
