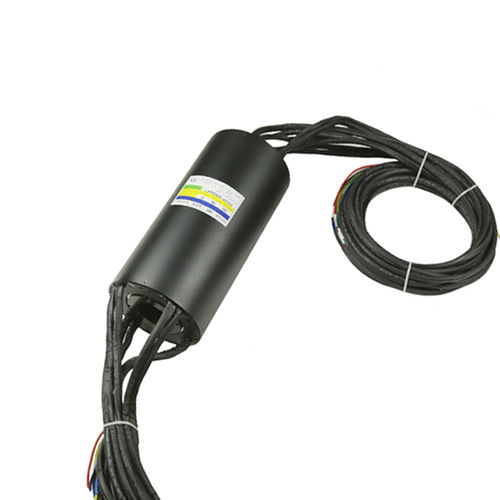

through-bore slip ring / for rotary tables / high-current / rugged
LPT050-4030 JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Construction:

    through-bore

  • Applications:

    for rotary tables

  • Other characteristics:

    high-current, rugged

  • Rotational speed:

    500 rpm (3,142 rad.min-1)

  • Current:

    Min.: 20 A

    Max.: 50 A

  • Voltage:

    380 V

  • Number of contacts:

    Min.: 1 unit

    Max.: 24 unit

Description

Part Number: LPT050-4030

40circuits

Current Range: 40 circuits*30A; Voltage of 380VAC;
Dielectric Strength: ≥1000V@50Hz between circuits; Insulation: 500MΩ@500VDC;
Electrical Noise: ≤70mΩ;


Wire Size: AWG12# Tin plated Teflon;
Operating Speed:0~300rpm; Wire Length: stator (1500mm), rotor(1500mm);
Contact: Precious metal; Housing: Aluminum alloy;
Inner Diameter: φ50mm;

Working Temperature: -20°C~+60°C; Up to 60%RH; IP54;
