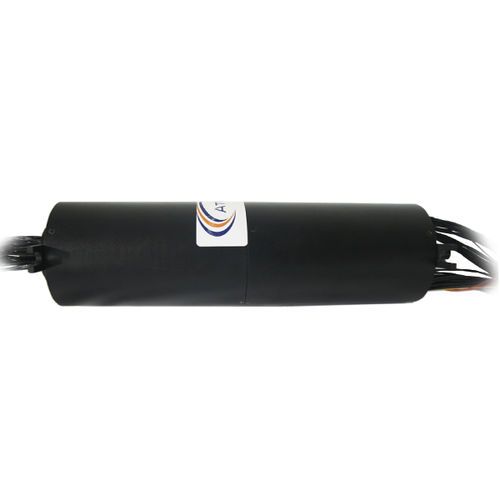

hollow-shaft slip ring / robotic / rugged
LPT010-2205-2802-1201 JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Construction:

    hollow-shaft

  • Applications:

    robotic

  • Other characteristics:

    rugged

Description

Part Number: LPT010-2205-2802-1201

62 circuits

Current range: 22 circuits*5A, 28 circuits*2A, 12 circuits*1A ;
Voltage of 150 VDC, 50VDC; Dielectric Strength ≥500VAC@50Hz between circuits;
Insulation of 100MΩ@500VDC; Electrical Noise: ≤70mΩ
Wire Size: AWG22/26/28#Teflon UL AWG22# Two core twisted wire(Teflon)
AWG26/28# two core twisted shielded wire (Teflon);

Operating Speed:0~300 rpm; Wire Length: stator (2000mm), rotor(2000mm);
Inner diameter of φ10mm; Contact: Gold to Gold; Housing: Aluminum Alloy;

Working Temperature: -20°C~+60°C; Up to 60%RH; IP54;
