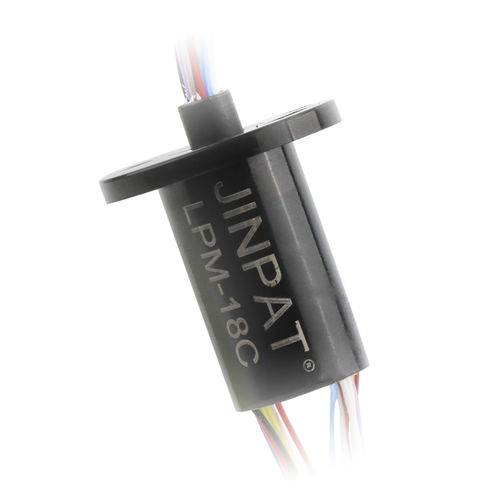

CAN bus slip ring / gigabit Ethernet / capsule / robotic
LPM-18C JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Type:

    CAN bus, gigabit Ethernet

  • Construction:

    capsule

  • Applications:

    robotic

  • Other characteristics:

    compact

  • Rotational speed:

    250 rpm (1,571 rad.min-1)

  • Voltage:

    100 V

  • Number of contacts:

    18 unit

Description

Compact Size and Gigabit Ethernet Integrated Slip Ring

The LPM-18C is a high-precision slip ring manufactured by JINPAT, supporting the integrated transmission of Gigabit Ethernet, TRIG signal, BUS signal and ACAP signal etc. The LPM-18C miniature capsule slip ring has been designed with positive inversion structure, in terms of rotation, it allows varied forms whether for rotating degree or direction. Characterised by compact size and stable performance, the slip ring can be used in automatic equipments such as mechanical arms.

Specification
Circuits: 18 circuits
Signal Defination: 1*Gigabit Ethernet, 1*TRIG signal, 1*BUS signal, 1 *ACAP and 1 *ABUS
Contact: Precious metal;
Temperature: -40℃~+80℃
Voltage: 100VAC;
Electrical Noise: ≤15mΩ;
Working Speed: 0~250 rpm;
Wire Size: AWG28#, silver plated Teflon, UL;
Wire Length: 254mm (rotor), 254mm (stator);
Working Humidity: 60%RH
