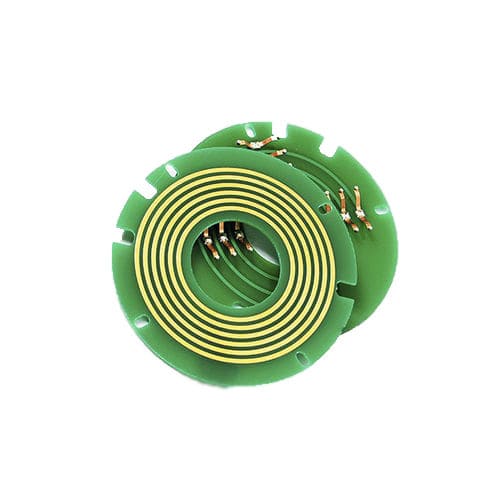

electric slip ring / USB / pancake type / compact
LPKS 028-02S-U2 JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Type:

    electric, USB

  • Construction:

    pancake type

  • Other characteristics:

    compact

  • Rotational speed:

    Min.: 0 rpm (0 rad.min-1)

    Max.: 100 rpm (628 rad.min-1)

  • Current:

    2 A

  • Voltage:

    5 V

  • Number of contacts:

    Min.: 1 unit

    Max.: 3 unit

Description

Part Number: LPKS028-02S-U2

3circuits

Current Range: 1circuit*USB2.0, 2circuits*signal; Voltage of 5VDC;
Dielectric Strength: ≥100V@50Hz between circuits; Insulation of 100MΩ@500VDC
Electrical Noise: ≤70mΩ

Operating Speed:0~100rpm;
Wire Length: stator (300mm), rotor(300mm);
Contact: Precious metal;
Housing: FR-4;
Inner Diameter: φ28.2mm

Working Temperature: -20°C~+60°C; Up to 60%RH; IP54

LPK series is a group of Pancake Slip Rings manufactured by JINPAT with the thickness as small as 6mm. They are designed exclusively for rotation systems in which installing space is limited in height at vertical direction. Both copper ring and brush contact surround a central hole, which saves space a lot. LPK series slip ring is divided into 2 kinds: separate pancake slip ring LPKS and LPK stand-alone pancake slip ring.

Features

◆ High Rotating Speed

◆ Unfailing contact, light figure

◆ Extremely low physical noise

◆ Transmitting power and signal in 360° rotation

◆ No interference or connection drop

Advantages

◆ Ready-made photoelectric encoder

◆ Optional solid and hollow shafts

◆ Rapid delivery

◆ Custom solution


Technical Ability


Circuits: 1~17circuits


Electric & Electronic

Current Rating:30A per circuit

Voltage Rating: 380VAC


Mechanical

Operating Speed: 0-300rpm

Inner Diameter: 4mm-820mm

Outer Diameter: 21mm-1220mm

Thickness:6mm-63mm

Torque: ≤0.05N.m

Shock Resistance: 30g


Environment

Temperature: -60℃~+150℃

Humidity: 100%RH

IP: IP66


Life: 5 million turns


*PS: parameters referred above are the maximum values (depending on specific model).
