Electric slip ring / HD-SDI / capsule / custom
miniature capsule slip ring with 4K HDMI signal for camera JINPAT Electronics Co., Ltd.

Characteristics

  • Type:

    electric, HD-SDI

  • Construction:

    capsule

  • Other characteristics:

    custom

  • Rotational speed:

    Min.: 1 rpm (6.28 rad.min-1)

    Max.: 300 rpm (1884.96 rad.min-1)

    300 rpm (1884.96 rad.min-1)

  • Number of contacts:

    Min.: 1 unit

    Max.: 24 unit

    24 unit

Description

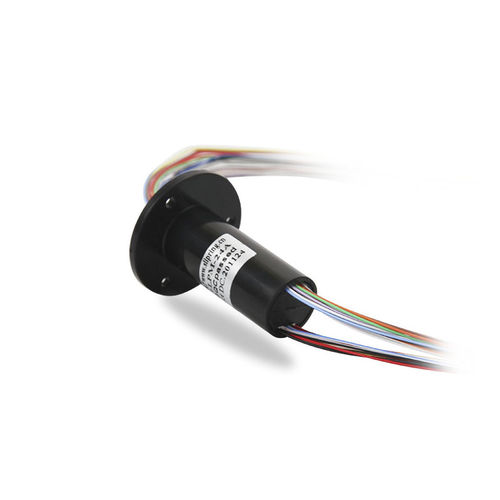

The LPM-24A miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
LPM-24A-HD01(JP13-250-01) is integrated 4K HDMI signal on the LPM-24A,this miniature high definition slip ring is specially designed for camera and VR devices.

Features:
1.ODxL(mm) ¢15.5*39.7
2.Voltage 48v/AC
3.Opearting speed 300rpm
4.4K HDMI signal design
