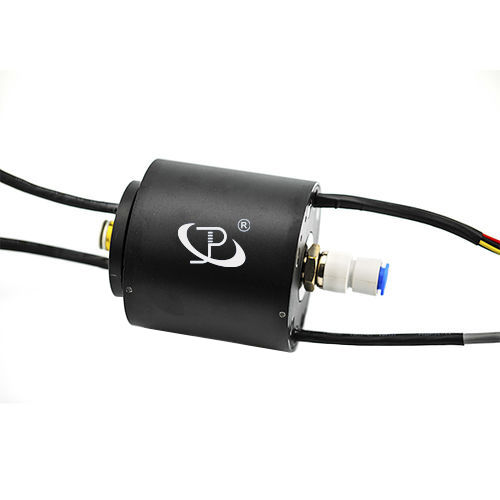

electric slip ring / gigabit Ethernet / capsule / hollow-shaft
LPT000-1002-U2-E3-HF02 JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Type:

    electric, gigabit Ethernet

  • Construction:

    capsule, hollow-shaft

  • Other characteristics:

    12 wires

  • Rotational speed:

    Min.: 0 rpm (0 rad.min-1)

    Max.: 50 rpm (314 rad.min-1)

  • Current:

    2 A, 15 A

  • Voltage:

    380 V

  • Number of contacts:

    Min.: 1 unit

    Max.: 12 unit

Description

Part Number: LPT000-1002-U2-E3-HF02

17circuits

Current range:4circuits*15A, 6circuits*2A, 1pair*100M Ethernet; Voltage of 380VAC; Dielectric Strength: between circuits ≥1000VAC@50Hz , 500VAC@50Hz (signal);
Insulation of 500MΩ@500VDC, 300MΩ@300VDC (signal) ; Electrical Noise: ≤70mΩ

Wire Size: AWG14#/22# tin plated Teflon®UL CAT5E Ethernet
Operating Speed:0~50rpm; Wire Length: stator (5000m), rotor(5000m);

Working Temperature: -20°C~+60°C; Up to 60%RH; IP54(rotor downwards)
