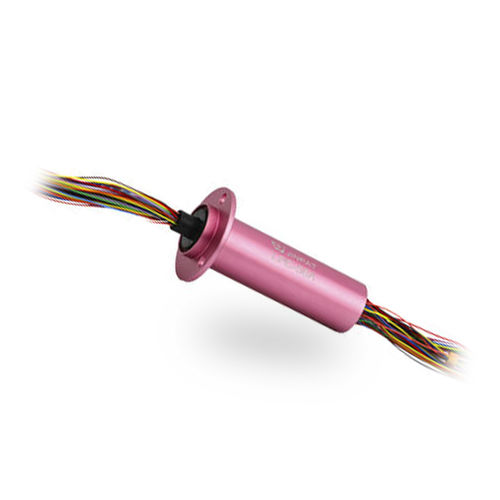

capsule slip ring / gold
LPC-56A JINPAT Electronics Co., Ltd.

Add to MyDirectIndustry favorites
capsule slip ring / gold capsule slip ring / gold - LPC-56A
{{requestButtons}}

Characteristics

  • Construction:

    capsule

  • Material:

    gold

  • Rotational speed:

    Min.: 0 rpm (0 rad.min-1)

    Max.: 300 rpm (1,885 rad.min-1)

  • Current:

    2 A, 4 A

  • Voltage:

    240 V

  • Number of contacts:

    Min.: 1 unit

    Max.: 56 unit

Description

Part Number: LPC-56A

46circuits

Current Range: 1circuit*audio, 2circuits*RG179signal, 23circuits*2A, 8circuits*4A,;
Voltage: 240VAC; Dielectric Strength ≥500VAC@50Hz between circuits;
Insulation of 100MΩ@500VDC; Electric Noise:≤15mΩ

Operating Speed:0~300rpm; Wire Size: AMG28#/26#/22#RG179 coaxial wire; Wire Length: stator (1200m), rotor(1200m);
Contact: Precious metal; Housing: Aluminum alloy;
Working Temperature: -20°C~+60°C; Up to 60%RH; IP54
