capsule electrical slip ring
LPC-56A-08U2 JINPAT Electronics Co., Ltd.

Add to MyDirectIndustry favorites

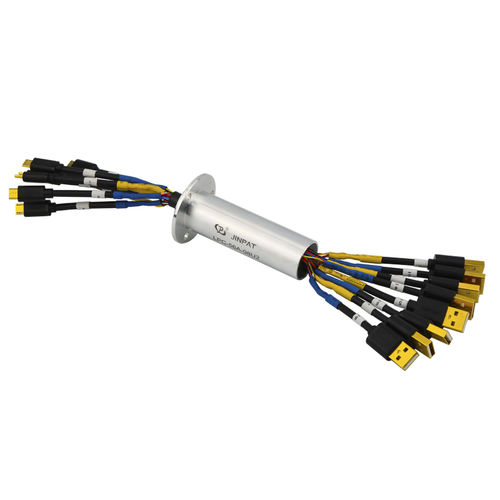

capsule electrical slip ring capsule electrical slip ring - LPC-56A-08U2
  • Capsule electrical slip ring


  • Construction:


  • Rotational speed:

    Min.: 0 rpm (0 rad.min-1)

    Max.: 300 rpm (1,885 rad.min-1)

  • Current:

    Min.: 2 A

    Max.: 100 A

  • Voltage:

    48 V

  • Number of contacts:

    Min.: 1 unit

    Max.: 8 unit


Reliable Performance, Stable Transmission

Special design with no surge kind of interference
Standard production process
Stringent tests before shipment

Part Number: LPC-56A-08U2

Current Range: 8 circuits*USB 2.0;
Voltage of 48VAC; Electrical Noise: ≤10 mΩ

Operating Speed:0~300rpm; Wire Size: A Type USB2.0 Male length of 2100mm
Wire Length: stator (250±5mm), rotor(250±5mm);
Connector Type: Micro Male USB2.0 (rotor), A Type Male USB2.0 (stator)
Contact: Gold to gold; Housing: Aluminum alloy;

Working Temperature: -20°C~+60°C; Up to 60%RH; IP54
