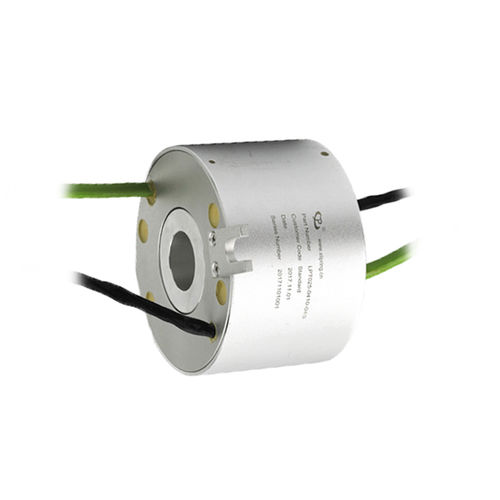

Through-hole electrical slip ring LPT025-0410-04S

through-hole electrical slip ring
through-hole electrical slip ring
through-hole electrical slip ring
through-hole electrical slip ring
Add to favorites
Compare this product


Characteristics

Construction
through-hole

Description

Part Number: LPT025-0410-04S 8 circuits Current Range: 4 circuits * 10 A, 4 circuits * Signal ; Voltage of 380 VAC; Dielectric Strength ≥500 VAC@50 Hz,300 VAC@50 Hz ; Insulation: 500 MΩ@500 VDC (current), 100 MΩ@300 VDC (signal) ; Electrical Noise: ≤70 mΩ; Operating Speed:0~50 rpm; Wire Size: AWG17# (1mm²)Tin-plated Teflon UL RS485 four-core wire; Wire Length: stator (300 mm), rotor(300 mm); Inner diameter of φ25.4 mm; Contact: Precious Metal; Housing: Stainless Steel 304; Working Temperature: -20°C~+60°C; Up to 60%RH; IP 65;
