electrical slip ring
LPC-0206-IP68 JINPAT Electronics Co., Ltd.

Add to MyDirectIndustry favorites

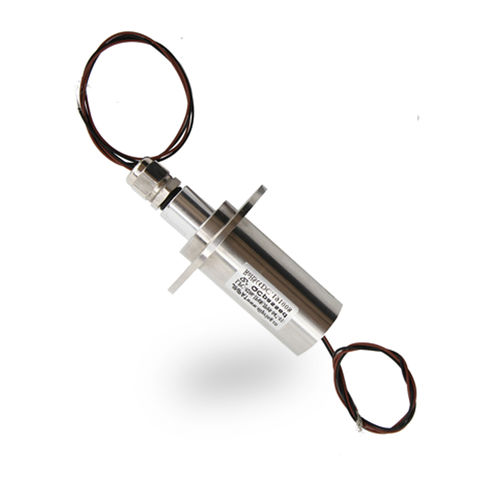

electrical slip ring electrical slip ring - LPC-0206-IP68
{{requestButtons}}

Characteristics

  • Rotational speed:

    Min.: 0 rpm (0 rad.min-1)

    Max.: 300 rpm (1,885 rad.min-1)

  • Current:

    6 A

  • Voltage:

    240 V

  • Number of contacts:

    Min.: 1 unit

    Max.: 2 unit

Description

Part Number: LPC-0206-IP68

2 circuits

Current range:2 circuits*6A; Voltage of 240VAC;
Dielectric Strength ≥500VAC@50Hz between circuits;
Insulation: 100MΩ@500VDC; Electrical Noise: ≤15mΩ


Operating Speed:0~300rpm; Wire Length: stator (250m), rotor(250m);
Contact: Precious Metal; Housing: Aluminum Alloy;

Working Temperature: -20°C~+60°C; Up to 60%RH; IP68;

Life: ≥10 million turns;
