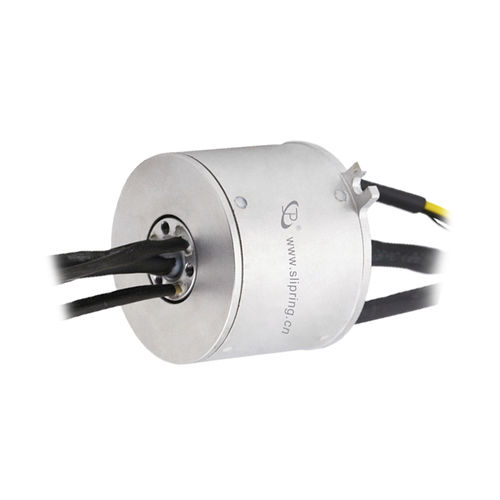

through-bore slip ring / anodized aluminum / with gold contacts
LPT000-0510-0202-13S JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Construction:

    through-bore

  • Material:

    anodized aluminum

  • Other characteristics:

    with gold contacts

  • Rotational speed:

    Min.: 0 rpm (0 rad.min-1)

    Max.: 180 rpm (1,131 rad.min-1)

  • Current:

    2 A

  • Voltage:

    Min.: 0 V

    Max.: 28 V

  • Number of contacts:

    Min.: 1 unit

    Max.: 20 unit

Description

Part Number: LPT000-0510-0202-13S

Circuits: 5 circuits * 10A, 2 circuits *2A, 13 circuits *Signal
Working Voltage: 28VDC(Power)
Dielectric Strength: 300V@50Hz
Insulation: ≥100MΩ@300VDC
Electrical Noise:≤70mΩ (50rpm)
Working Speed:0~180 rpm
Through Hole:φ80mm
Contact:Gold to Gold
Housing:Aluminum Alloy
Temperature: -45°C~+60°C
Humidity:≤60%RH
Protection Level: IP51
