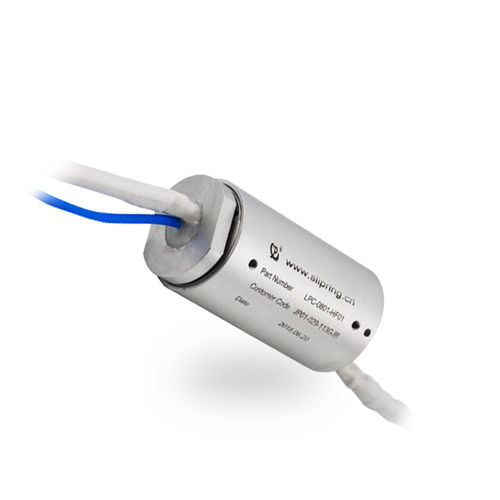

capsule slip ring / anodized aluminum / with gold contacts
LPC-0801-HF01 JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Construction:

    capsule

  • Material:

    anodized aluminum

  • Other characteristics:

    with gold contacts

  • Rotational speed:

    Max.: 100 rpm (628 rad.min-1)

    Min.: 0 rpm (0 rad.min-1)

  • Current:

    Max.: 5 A

    Min.: 1 A

  • Voltage:

    Max.: 28 V

    Min.: 0 V

  • Number of contacts:

    Max.: 9 unit

    Min.: 1 unit

Description

Part Number: LPC-0801-HF01

Circuits: 8 circuits * 1A, 1 circuit *HF *Signal
Electrical Part
Working Voltage: 28VDC Dielectric Strength: 500VAC@50Hz
Insulation:500MΩ@500VDC Electrical Noise: ≤15mΩ
Working Speed: 0~100 rpm Contact:Gold to Gold
Housing: Aluminum Alloy
Wire Size: AFSP-250-2*0.15mm² Twisted Shielded Wire (φ1.5)
Wire Length: Rotor:800±10mm Stator:800±10mm
Torque: ≤0.4N.m Weight: ≤200g
Temperature: -55°C~+70°C Humidity: ≤95%RH
IP54 Life: 5 million revolutions

HF Part
Characteristic Resistance: 50Ω Insertion Loss: <0.5dB
Insertion Loss Variation: <0.1dB VSWR: <1.4
Phase Variation:<1° Frequency Range: DC-18GHz
Housing: Brass Wire Size: TFLEX405
