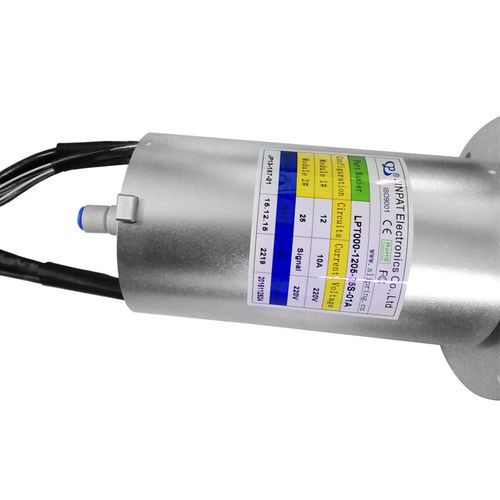

solid-shaft slip ring / for industrial applications / anodized aluminum / IP54
LPT000-1205-25S-01A JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Construction:

    solid-shaft

  • Applications:

    for industrial applications

  • Material:

    anodized aluminum

  • Other characteristics:

    IP54, rugged

  • Rotational speed:

    Max.: 10 rpm (63 rad.min-1)

    Min.: 0 rpm (0 rad.min-1)

  • Current:

    Max.: 10 A

    Min.: 1 A

  • Voltage:

    220 V

  • Number of contacts:

    Max.: 37 unit

    Min.: 1 unit

Description

Part Number: LPT000-1205-25S-01A

JINPAT slip ring for servo system helps transmit signals and current stably. Simultaneous transmission of other signals or integration with other rotary joints is supported. Internal wire diagram and special shielding in modular design make a complete to encoder signal interference or code error. It, therefore, ensures the output is achieving the desired effects.

Features:

Circuit: 12 ckt *10A, 25 ckt *Signal, 1 ckt *gas
Voltage: 220V
Dielectric Strength: ≥500V@50Hz between circuits
Insulation Resistance: 1000 MΩ©@500 VDC
Electrical Noise:≤6 mΩ
Operating Speed: 0~10 rpm
Working Temperature: -20℃~+60℃
Protection Grade: IP 54
