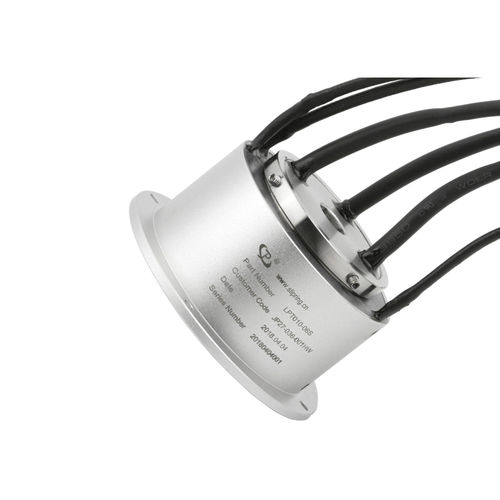

through-hole slip ring / for motors / for industrial applications / gold
LPT010-06S JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Construction:

    through-hole

  • Applications:

    for motors, for industrial applications

  • Material:

    gold

  • Other characteristics:

    IP54

  • Rotational speed:

    Max.: 1,500 rpm (9,425 rad.min-1)

    Min.: 0 rpm (0 rad.min-1)

  • Current:

    Max.: 5 A

    Min.: 1 A

  • Voltage:

    5 V

  • Number of contacts:

    Max.: 6 unit

    Min.: 1 unit

Description

Part Number: LPT010-06S

Circuits: 6 ckt*signal
Voltage: 5V AC/DC
Contact Resistance Fluctuation Value: ≤70mΩ (in 50rpm)
Working Speed: 0~1500 rpm
Contact: Gold to gold
Housing: Aluminum alloy
Through Hole: φ10mm
Wire Size: K thermocouple wire
Wire Length: Stator:300mm; Rotor: 300mm
Working Temperature: -40~+160℃
Humidity: ≤60%RH
Protection Grade: IP54
