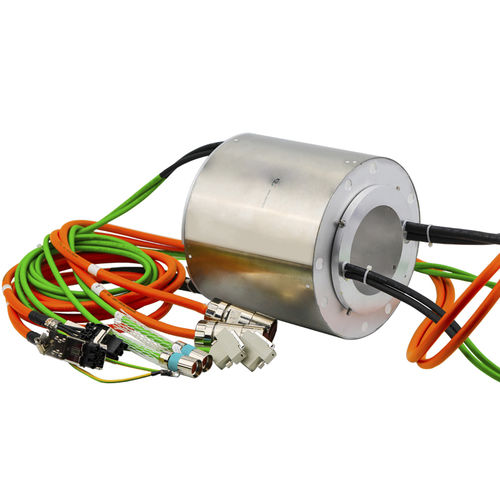

through-bore slip ring / for industrial applications / stainless steel / IP65
LPT130-0830-16S JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Construction:

    through-bore

  • Applications:

    for industrial applications

  • Material:

    stainless steel

  • Other characteristics:

    IP65

  • Rotational speed:

    Min.: 0 rpm (0 rad.min-1)

    Max.: 100 rpm (628 rad.min-1)

  • Current:

    Min.: 1 A

    Max.: 30 A

  • Voltage:

    Min.: 240 V

    Max.: 380 V

  • Number of contacts:

    Min.: 1 unit

    Max.: 24 unit

Description

Part Number: LPT130-0830-16S

● Circuit: 8ckt*30A, 16ckt*Signal
● Voltage: 380VAC/240VDC
● Dielectric Strength: between circuits ≥1000V@50Hz (current);≥500V@50Hz(signal)
● Insulation Resistance: 500MΩ@500VDC (current); 300MΩ@500VDC (signal)
● Dynamic Resistance Fluctuation Value: ≤10mΩ (in 50 rpm)
● Working Speed: 0~100 rpm
● Contact: Precious Metal
● Housing: Stainless Steel
● Wire Size: four-core shielded wire
● Wire Length: Rotor: 1500mm; Stator: 1500mm
● Bore Size: φ130mm
● Vibration Resistance: ≤500um
● Working Temperature: -20~+80℃
● Humidity: ≤60%RH
● Protection Grade: IP65
