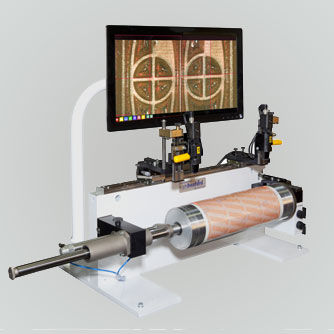

Flexo plate mounting machine Standard Size

flexo plate mounting machine
flexo plate mounting machine
flexo plate mounting machine
Add to favorites
Compare this product


Characteristics

Applications
flexo plate

Description

Accurate plate mounting, achieving perfect register, is an essential requirement enabling a printer to produce high quality products and increased press productivity Proven design with excellent reliability Models for cylinders or sleeves Two 50x magnification colour digital inspection cameras Illuminators for easy location of the registration marks Versatile configurations Can be used for both flexo and letterpress plates Tool less operation Industrial grade fan-less computer Standard equipment supplied with each model Two 50x magnification colour digital inspection cameras for mounting one plate across. Each camera has a high intensity LED illuminator which generates a spot of light onto the sleeve/cylinder to enable rapid positioning of the plate and illumination of the plate register marks. Industrial grade fan-less computer, 2GB RAM, 160GB HDD, 4 USB ports, operating temperature -20 Degrees Celcius to 70 Degrees Celcius at 100% CPU loading. A 21.5" screen with mouse displaying both camera images on a single screen. Quick release adapters for different cylinder types, adapter exchange is tool free (cylinder version only). Tool free adjustment of left hand cylinder support for cylinders with different widths or cantilever mandrel system for sleeves. Pneumatic detenting system to prevent sleeve rotation during mounting (option on the EES). Fast change mechanism for focal adjustment. Cantilever mandrel system for standard pres type, left hand sleeve loading (sleeve versions only).
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
