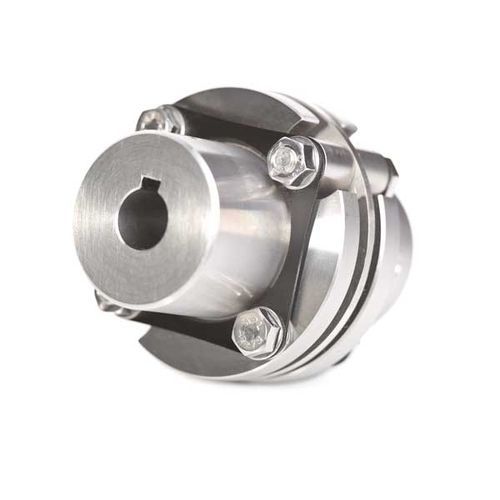

Flexible coupling HKS(I) 5 (Ex)
with encodercompactzero-backlash

flexible coupling
flexible coupling
flexible coupling
flexible coupling
flexible coupling
flexible coupling
Add to favorites
Compare this product


Characteristics

Type
flexible
Product applications
with encoder
Other characteristics
compact, zero-backlash, ATEX, explosion-proof, for explosive areas
Torque

Min.: 0 Nm
(0 ft.lb)

Max.: 3 Nm
(2.2127 ft.lb)

3 Nm
(2.2127 ft.lb)

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 6,000 rpm
(37,699.11 rad.min-1)

6,000 rpm
(37,699.11 rad.min-1)

Description

Corrosion proof HKS metal multiple disc couplings compensate an angular offset up to 0.5° and an axial misalignment up to ±1 mm as well as extending the service life of encoders in the process. They are safety components in accordance with DIN EN ISO 13849-2 (PL e) with CE declaration of conformity and designed in high safety factors relating to fatigue resistance and fault exclusion. In addition, it is possible to implement failsafe encoder attachment solutions in potentially explosive atmospheres. As a consequence, they are ideal for extreme operating conditions. Single joint couplings are available with different hub lengths and bore diameters in addition to insulated coupling versions for attachments where the risk of shaft currents is a concern.

Catalogs

No catalogs are available for this product.

See all of Johannes Hübner Giessen‘s catalogs
