Automatic packaging machine / blister
DPP80 Jornen Machinery Co., Ltd.


  • Operational mode:


  • Type:

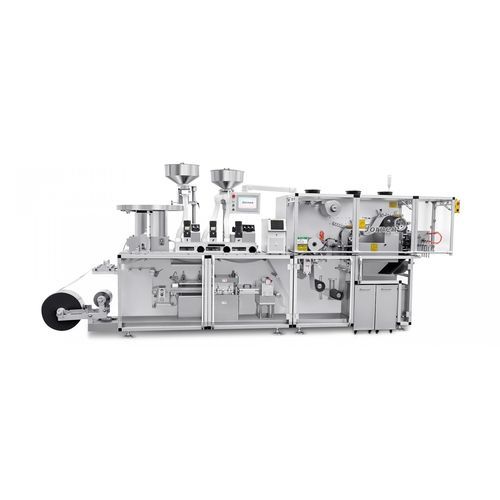

DPH260 Blister Machine
1. Currently the fastest Blister Machine in China; it is the culmination of over 20 years professional experience.
2. The machine accommodates forming material reels of up to 600mm in diameter and a waste material trimming cutter, which allow production runs of approximately 90 minutes therefore reducing the material replacement frequency.
3. Equipped with integrated forming material splicer to enhance efficiency.
4. Automatic format positioning system achieves straightforward format changeover.
5. Window frame type no-waste-trimming cutter saves packaging materials.
6. Adopts transverse cutter which easily collects its blister card and rejects faulty blister.
7. Can be connected to subsequent machines, e.g. High-Speed Cartoners, to form a whole pharmaceutical packaging line.

Main Technical Parameters:
Max. Speed: alu/alu 100 punches/min. alu/pvc 200 punches/min.
Max. Output:800 blisters/min. (alu/pvc blister size 57× 80mm)
Max. Forming Area:245×180mm
Max Forming Depth:12mm
Material:Max. width 260mm
Machine Power:15kw
Machine Dimension: 4800mm×1250mm×2000mm
Machine Weight: 2500kg

Domains:for the pharmaceutical industry
Other characteristics:high-speed
