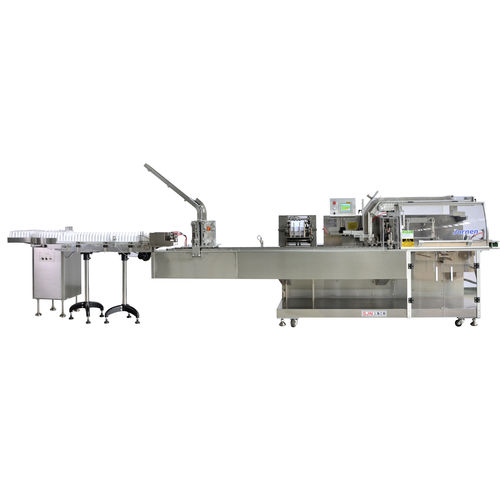

vertical cartoner / for the cosmetics industry / for dairy products / for confectionery products
Jornen Machinery Co., Ltd.



  • Type:


  • Applications:

    for the cosmetics industry, for dairy products, for confectionery products, for the food industry, for the medical industry

  • Other characteristics:

    servo-driven, for hygienic applications, for blister packs, intermittent-motion, continuous-motion

  • Throughput:

    100 p/min

    Max.: 120 p/min

    Min.: 1 p/min


Automatic intermittent motion horizontal cartoning machine, very compact and reliable. The working area is in cantilever (balcony type) layout. The main structure has a vertical partition to separate the drive section (rear) from the operating zones (front). It is suitable for packaging of bottles, blisters, vials, pillow packs, etc.
The machine runs stable and provides easy changeover for different sizes of cartons.
It can fold leaflets, open cartons, insert the products and leaflets into cartons, emboss, tuck-in or hot-melt closures and automatically discharge cartons.
The machine is equipped with a series of sensors and automatic protective devices to assure the machine runs safely and effectively.
It can connect with Blister Machine, Pillow Pack Machine,Overwrapper, etc., to form a Production Packaging Line.
