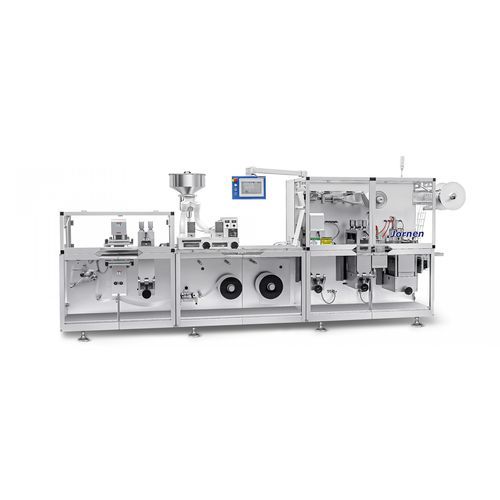

Automatic packing machine / blister / liquid / for cardboard boxes
BMP270 Jornen Machinery Co., Ltd.

Characteristics

  • Operational mode:

    automatic

  • Type:

    blister

  • Applications:

    liquid, for cardboard boxes, for powders, for tires

  • Domain:

    for the food industry, for laboratories, for clean rooms

  • Other characteristics:

    with conveyor, compact, high-rate

  • Throughput:

    Min.: 0 p/min

    Max.: 400 p/min

    380 p/min

Description

· The main structure has a vertical partition to separate the drive section (rear) from the operating zones (front).
· GMP-compliant cantilever (balcony type) layout for easy, pharmaceutically compliant cleaning.
· Adopts digital position indicator achieves straightforward adjustment.
· Equipped with format locking, positioning system and quick-fitting, tool-free design, achieves extremely straightforward format changeover (new).
· In the sealing station, when the machine stops, the heating sealing mould can rise up automatically, to prevent hot air from getting into the blister pockets, so that medicine effectiveness is preserved.
· Sealing pressure adopts the gas-hydraulic pressure cylinder, so the pressure can be set freely according to the sealing area (commonly a larger sealing area requires higher pressure) (new).
· This machine is equipped with an integrated forming material splicer to enhance efficiency during material replacement.
· The upper and lower plates adopt contact heating method that significantly reduces the forming temperature.
Main Technical Parameters:
Max. Speed: alu/alu 40 punches/min. alu/pvc 50 punches/min.
Max. Output: 400 blisters/min. (alu/pvc blister size 57× 80mm)
Max. Forming Area: 265×170mm
Max Forming Depth: 22mm
Material: Max. width 270mm
Machine Power: 14.5kw
Machine Dimension: 5300×1200×2000mm (5 stations)
Machine Weight: 2400kg
