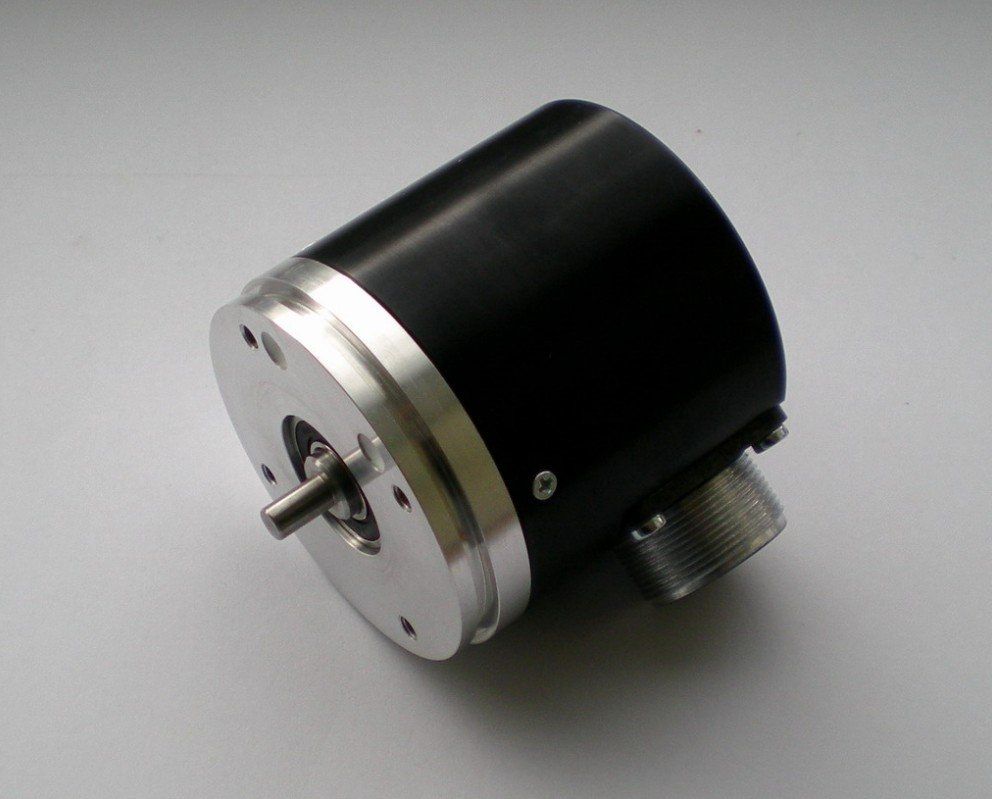

Optical incremental rotary encoder
ø 58 mm, 100 - 108 000 ppr | Model A58B
JSC "Precizika Metrology"
The photoelectric rotary encoder is used to establish an informational link between the key components of machines, industrial robots, comparators and DCC, NC or Digital Readout units. It gives information about the value and direction of the motion components. The encoder is used in automatic control, on-line gauging, in process monitoring systems, etc.
The encoder consists of three parts: mechanical, optical and electronic.
The case of the encoder is fixed to an object by means of screws. The shaft of the encoder is connected with an object shaft by virtue of a compensating coupling.
Diameter, mm: 58;
Number of pulses per revolution: 100 to 108000;
Output signals/ Power supply: ~11 µApp; ~1 Vpp;
TTL; HTL/+5V; 10 to 30 V;
Accuracy, arc.sec.: ±0.1T (T - period lines on disc).
