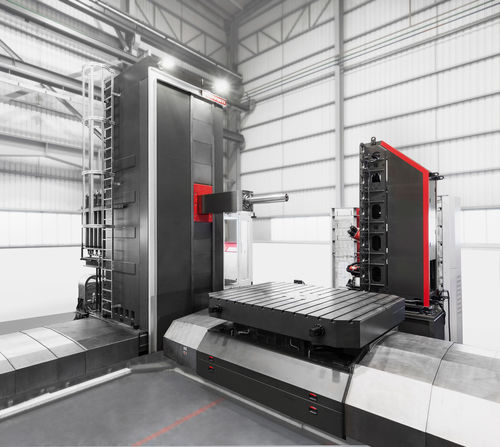

CNC boring center MP6-RAM
verticaluniversalfor molds

CNC boring center
CNC boring center
CNC boring center
CNC boring center
CNC boring center
CNC boring center
CNC boring center
CNC boring center
CNC boring center
CNC boring center
CNC boring center
CNC boring center
CNC boring center
Add to favorites
Compare this product


Characteristics

Control type
CNC
Spindle orientation
vertical, universal
Applications
for aeronautics, for molds, for railway applications, for the energy sector, for the oil and gas industry
Other characteristics
high-precision, high-rigidity, traveling-column, floor
X travel

4,000 mm
(157 in)

Y travel

Min.: 2,000 mm
(79 in)

Max.: 5,000 mm
(197 in)

Z travel

Min.: 1,200 mm
(47 in)

Max.: 1,500 mm
(59 in)

W travel (spindle)

Min.: 800 mm
(31 in)

Max.: 1,000 mm
(39 in)

Power

64 kW, 96 kW
(87.01575 hp, 130.52363 hp)

Description

Travelling column machine with hidrostatic guiding for unsurpassed accuracy The MP travelling column boring center is at the pinnacle of the JUARISTI series. Unbeatable results, guarantee of the highest precision and very high machining power thanks to hydrostatic technology. Designed to meet the demands of the most complex, critical parts down to the last millimetre over a long service life. The hydrostatic guiding allows extraordinarily smooth movements. The triple automatic compensation system seamlessly blends with the hydrostatic technology, taking the stability of the entire system to the next level. This floor type boring center guarantees maximum rigidity in the heaviest machining jobs. Premium solution with the best available technologies. Unbeatable cutting capacity. Extremely smooth movements and perfect finishes. Long service life due to reduced vibrations. STRUCTURAL ELEMENTS Hydrostatic guiding on all axes, with wide hardened and ground guides. RAM triple compensation system: column verticality, head + RAM centre of gravity and RAM straightness. Fully enclosed RAM with 4-sided hydrostatic guiding, made of ground cast iron. TECHNOLOGY AND AUTOMATION 1 or 2 axes continuous rotation head 6,000 min-1 / 15,000 min-1. Facing head of up to 2,000 mm. Rotary tables with up to 180 tonne capacity, which enable large, complex pieces to be machined in a single clamping. Rotary tables from 1,000 x 1,000 to 5,000 x 6,000 mm with 1 or 2 CNC axes. TECHNOLOGY AND AUTOMATION ATC– Automatic tool changer chain-type or robot-type (up to 160 and 500 tools respectively). Head magazines with up to 10 automatic change positions.

VIDEO
