Horizontal drilling rig PMx25

pilingrotaryhydraulic

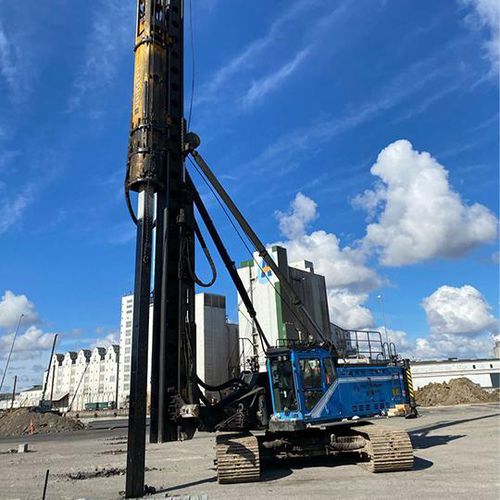

The Junttan PMx25 is built for a wider use in piling projects. A medium sized rig with exceptional stability and an ability to do steeper inclinations than its PMx24 sister. This rig can take ram weight up to 7 tons of Junttan’s hydraulic hammers, and long piles that can reach up to 24m. Since the rig is X-series, it includes the full benefits of the x control system. Junttan PMx25 is a medium weight piling rig designed for driving steel and concrete piles. The rig has excellent stability and wide leader inclination angles. The recommended hammer ram weight is from 5 000 to 7 000 kg and the maximum pile length is 24 meters (79 ft) with SHK 100-3/4 hammer. The rig has proven productivity and the telescopic leader ensures easy and fast handling of piles. Top pile driving performance is guaranteed with Junttan hydraulic hammers. An optional side drill or vibrator hammer makes pile driving even more efficient in some soil conditions. With optional Junttan equipment, optimised working set-up of the rig can be easily achieved. This Junttan piling rig has all proven features of Junttan X-series, but bigger engine than its smaller brothers. Its rugged design makes it a safe and reliable rig even in the most demanding working conditions. The self-erecting leader and many advanced technical features ensure that the rig is ready to work in just a few minutes. The ergonomic and safety tested cabin allows the driver to concentrate completely on his work. The expandable tracks and low centre of gravity make the rig exceptionally stable in different working situations. The horizontal movement of the leader ensures fast spotting of the pile.
