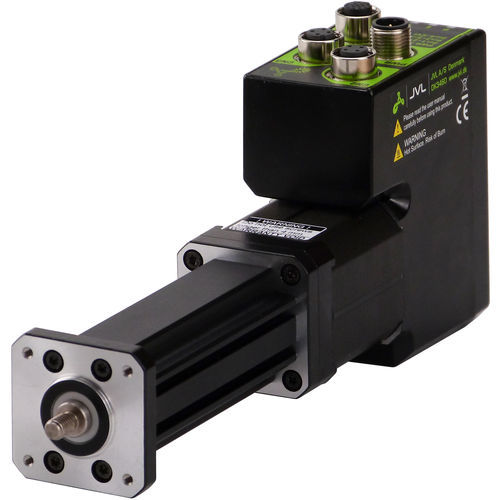

DC motor MIL17 series
stepperEMCIP55

DC motor
DC motor
DC motor
DC motor
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
stepper
Protection class
EMC, IP55, IP65
Configuration
with brake, with integrated driver and coder, NEMA 17, small, compact
Applications
spindle, linear actuator, for rotary tables
Other characteristics
constant speed, high-torque, high-precision, RS-485, CANopen, with integrated controller, integrated-drive, programmable, EtherCAT, with built-in electronics, integrated speed control 0-10 V, variable-torque, closed-loop, motion control, with built-in encoder
Rotational speed

Min.: 60 rpm
(376.99 rad.min-1)

Max.: 750 rpm
(4,712.39 rad.min-1)

Description

Linear stepper motors can dramatically reduce cost and save space. There is no coupling, no additional bearing support and no assembly work required. This not only reduces cost but also reduces failure rate due to the lower number of components and more simple construction. In applications with small load ratings a linear guide is not required. The special design and material of the nut secure long life operation. Below versions can be delivered • Captive linear actuator with built-in guider for linear movements. Moving parts do not rotate. • External linear actuator. Nut mounted on lead screw. • Rolled ball screw. On request • Different stroke length • Special nut design • STO connector
