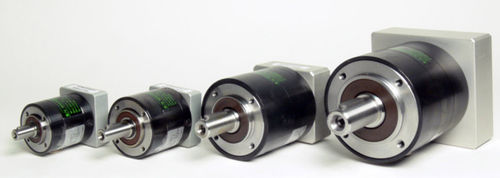

Planetary gear reducer HTRG series
coaxialright angle200 - 500 Nm

planetary gear reducer
planetary gear reducer
Add to favorites
Compare this product


Characteristics

Type
planetary
Shaft orientation
coaxial, right angle
Torque
200 - 500 Nm, 20 - 50 Nm, 100 - 200 Nm, 50 - 100 Nm, 500 - 1000 Nm, 10 - 20 Nm
Performance
precision, high-precision
Applications
for servo motors
Other characteristics
mounted, combined
Rotational speed

Min.: 1,500 rpm
(9,424.78 rad.min-1)

Max.: 4,000 rpm
(25,132.74 rad.min-1)

Description

The HTRG product range of precision planetary gears is the outcome of years of experience in the industry, and is the culmination of a decade-long dedication to performance enhancement. Comprising a wide range of low backlash planetary gearboxes, the units come in a range of precision classes up to 3’, and are available in seven gear frame sizes, with one or more reduction stages for gearing ratios from 1:3 to 1:1000. Double shaft, right angle shaft and right angle output shaft versions are also available. All this, combined with tens of motor mounting adapters held in stock, mean we can quickly respond to the most diverse application requirements of our customers. The gears can be mounted directly or by means of adaptor flanges on most of the JVL integrated servo and stepper motors as well as on the wide range of other motors from JVL. This datasheet shows the HTRG types of gear boxes which JVL normally has in stock for JVL motors and often delivered types. If a special type of gear box, a special ratio, less backlash, angled types etc. is not shown in the datasheet and is needed, then contact JVL A/S and we’ll find a type or a solution.
