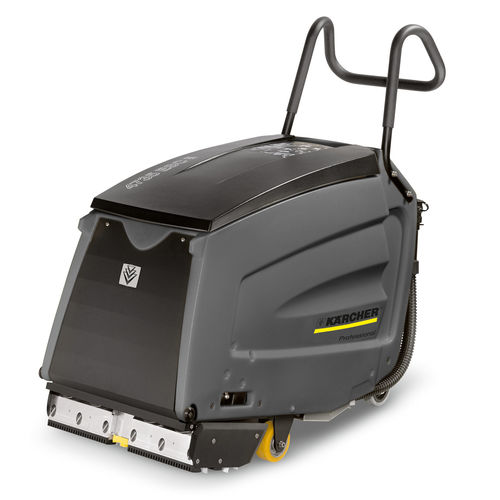

Walk-behind scrubber-dryer BR 47/35 Esc
electricescalator

walk-behind scrubber-dryer
walk-behind scrubber-dryer
walk-behind scrubber-dryer
walk-behind scrubber-dryer
walk-behind scrubber-dryer
walk-behind scrubber-dryer
walk-behind scrubber-dryer
Add to favorites
Compare this product


Characteristics

Configuration
walk-behind
Power source
electric
Other characteristics
escalator
Working width

470 mm
(19 in)

Hourly cleaning capacity

75 m²
(807.29 ft²)

Description

Machine for basic and maintenance cleaning of escalators and travelators with a performance of 2-3 escalators/travelators per hour. Cleaning with the BR 47 35 esc is performed with the escalator or travelator running. The machine is positioned at the bottom of the escalator. Special nozzles spray the cleaning solution onto the scrubbing brushes, which then apply it to the treads. (Treads must move away from the machine.) Dirty cleaning solution is vacuumed away gain in the same operation. This is assisted by pick-up brushes which convey the solution to the suction nozzles. The shape of the brush head and the central brush motor allow the brushes to reach and clean the outermost grooves in the tread. A centring skid in the middle of the brush head keeps the machine in alignment during the cleaning process. The BR 47 35 esc is suitable for many different makes of escalators and travelators. Four different sets of combs are available to suit most makes. They engage in the tread grooves to provide a seal between the machine and the treads for efficient pickup. FEATURES AND BENEFITS Excellent suction power • The applied water is reliably sucked back into the machine by the two powerful suction turbines together with four straight suction hoses and matching combs. • Prevents water from dripping into the escalator shaft. Suitable for escalators • Combs which enter the grooves in the escalator provide the necessary vacuum. • Different combs are available to suit different types of escalators. This ensures that the moisture is effectively vacuumed from the escalator.
