Centerless grinding machine SZ

sharpening centermanually-controlleddirect-drive

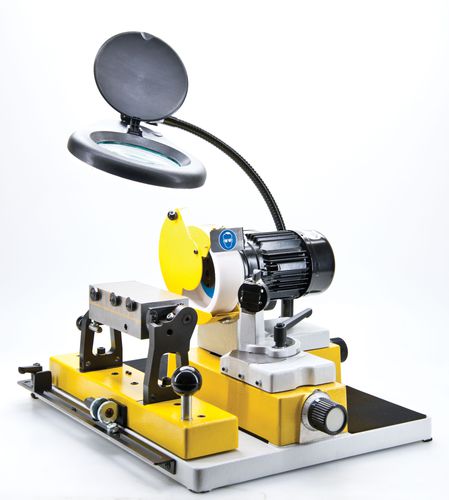

Compact drill and universal grinding machine with adjustable magnet clamping table grinding table with electromagnetic tension - thereby universally applicable. Safe clamping and sharpening of turning steel, turret plates, plane measurers, chisels and other tool forms. The grinding table is equipped with a precision circulating ball guidance. Therefore high precision and longevity is guaranteed! The integrated drill grinding machine BSM 20 has a clamping range from 1mm to 20mm quick and simple handling by our proven patented reversing prism system that guarantees the highest possible accuracy and cutting edge symmetry! sharpens twist drills, step drills, sheet metal drills, wood drills, two edged drills, from HSS and tungsten carbide (also special forms) Standard equipment: Sharpening center inclusive BSM 20 clamping range 1mm to 20mm 2 special fused alumina grinding wheels (pot and drill grinding wheel) diamond wheels diamond dresser and precision optics motor 230V/50Hz 0.12 KW Grinding table with electromagnetic clamping
