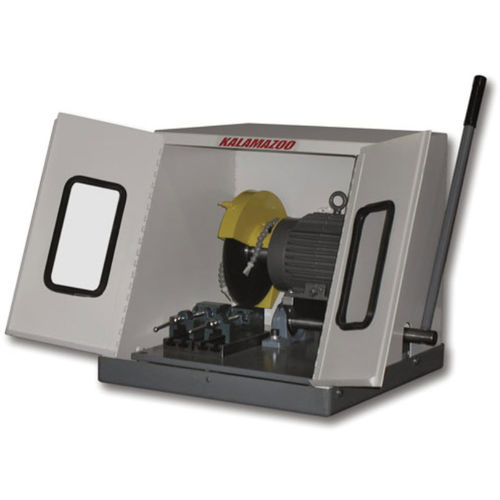

Kalamazoo Industries K10WBT 10 inch enclosed bench top metallurgical saw. Features a powerful 2HP 3PH, 3450 RPM motor, pump and tank system, dual 3″ tool makers vises mounted on a t-slot table and single left side access port.
Kalamazoo Industries K10WBT 10 inch enclosed bench top metallurgical saw is a great compact enclosed metallurgical sectioning saw for cutting coupons, weld tests and other metallurgical cuts!
Gives bright clean metallurgical cuts for good metallurgical samples!
Robust construction, simple manual operation!
Dual vises and T slot table allow for easy fixturing of work pieces!
Additional Information.
Magnetic switch
Dual 3” tool makers vises
2Hp TEFC Motor, 3Ph, 220 or 440 volt (please specify voltage).
Capacity: 1.5” solids, 2.5” pipe
Internal lite
Coolant tank & pump
Dual coolant nozzles
5/8″ LH spindle arbor, optional: 1.250” or 32mm
T-Slot Table
Removable 5″ LEFT side access panel for long parts. ( will not allow bar to pass thru other side of cabinet).
10″ Diameter abrasive blade (not included)
Dimensions : L 24″ x W 24″ x H 24″
Capacities: 1.5″ solids, 2.5″ pipe
Weight: 400 lbs.
Weight with stand: 700lbs
Optional stand available.
Optional: 50 hz , 380 volt.
Made in USA!
Model: K10WBT
