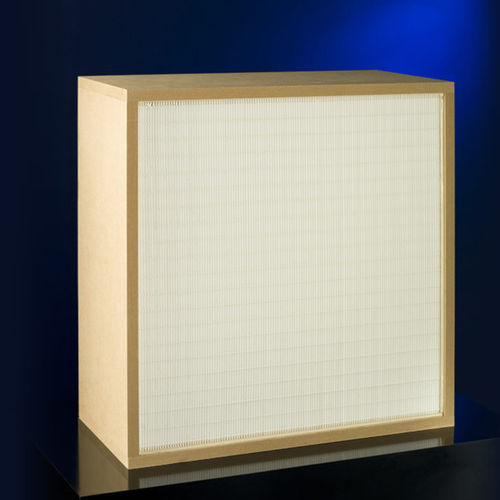

Air filter EP-11 /HP-13panelseparationpleated
Add to favorites
Compare this product
Characteristics
- Designed for
- air
- Filtration element
- panel
- Applications
- separation
- Other characteristics
- pleated, HEPA
- Operating pressure
Max.: 500 Pa
(0.073 psi)Min.: 125 Pa
(0.018 psi)- Flow
Max.: 1,100 m³/h
(38,846.133 ft³/h)Min.: 260 m³/h
(9,181.813 ft³/h)
Description
Application:
HEPA terminals, LF work benches
Hospitals
Pharmaceutical technology
Description
Filter classes
E11-H13
Structure/Media
high-quality microfibre paper with spacers of thermoplastic adhesives
particle-tight frame compound
Design
MDF-frame, anodised aluminium profile or galvanised sheet-steel frame
flat profile gasket
standard installation depths:30, 78, 150, 292 mm
Advantages
self-supporting media pack with optimised pleating geometry
mounting independent of position enables easy installation
