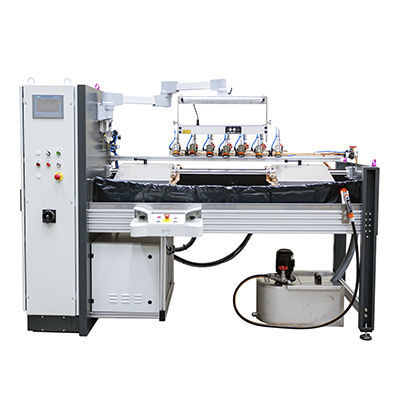

Multi-parameter test stand DEUTROFLUX UMT 350/600/900

automaticmagnetic particleindustrial

The DEUTROFLUX UMT crack detection system sets new standards in magnetic particle crack detection. With its three model variants (350/600/900), the UMT series was developed for crack detection on a wide variety of forgings and castings up to 900 mm component length. In the basic version the test current is 2000 A. In special versions test currents up to 5000 A are possible. All machines of the UMT series are designed as standing workstations. The switch cabinet is permanently connected to the machine body, eliminating the need for extensive cabling work on site. As a compact and forklift-compatible unit, all machines in the UMT series can be moved to other locations very easily. Key Facts • Two phase-shifted alternating currents generate a rotating magnetic field and indicate cracks in any direction in a single operation • Use of the alternating current skin effect for uniform magnetization and problem-free demagnetization, even with complicated workpieces • Minimization of operating errors through automatically running test cycles (clamping, rinsing, magnetizing, magnetizing/demagnetizing, relaxation) • High operational reliability and trouble-free service for many years due to components from renowned manufacturers • Flanged control cabinet, easily accessible for operation and service • ISO profiles enable subsequent attachment of trays, helpful accessories, holders, etc. • Each rinsing shower is individually adjustable and can be pneumatically switched on and off together: Short rinsing times, no dripping
