circular vibrating screener / for bulk materials / self-cleaning
VB24 Kason

{{requestButtons}}

Characteristics

  • Type:

    circular vibrating

  • Material:

    for bulk materials

  • Other characteristics:

    self-cleaning

Description

VIBROSCREEN® Quick Clean/Change Screeners
Quick-Access Screener

Speeds cleaning, screen changes

Kason's "Air-Lift" quick-access system for circular vibratory screeners allows rapid interior cleaning, inspection and screen changes while reducing manual effort.

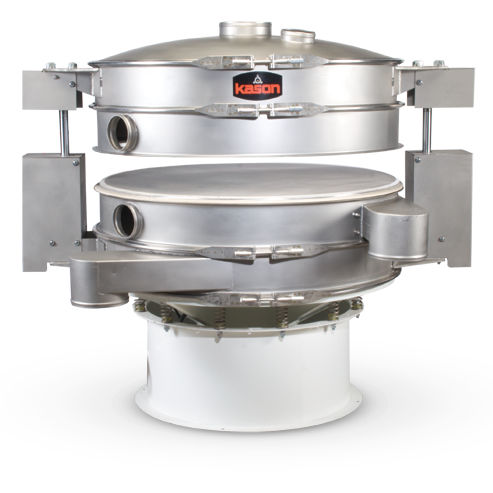

The device consists of two vertically mounted air cylinders that are located on opposing sides of any circular screener and affixed to mounting brackets on the lower and upper screening frames.

To operate, a quick-acting band clamp connecting the frames is removed and a remote air valve is actuated, raising the upper frame(s). The procedure is reversed to reconnect the frames.

One entire raise/lower cycle, including disconnection and reconnection of the frames, can reportedly be accomplished in five minutes, reducing downtime during inspection, cleaning and screen-changes. In addition, one operator can now perform what was previously a two-person task, depending on screen diameter.
Safety features include a safety lock-out that secures the frames in the open or closed position when the upper screener housing is raised or lowered, safety bars that prevent the housing from accidentally descending while in a fully-raised position during screen changes or wash down, and optional enclosures that cover the pneumatic cylinders (shown).

The Air-Lift device is available on any new Kason screener, and can be retrofit to any circular vibratory screener of any make or model from 40 in. to 84 in. (1000 mm to 2135 mm) in diameter, including screeners having single or multiple decks, and screens with or without center holes and/or anti-blinding devices.
